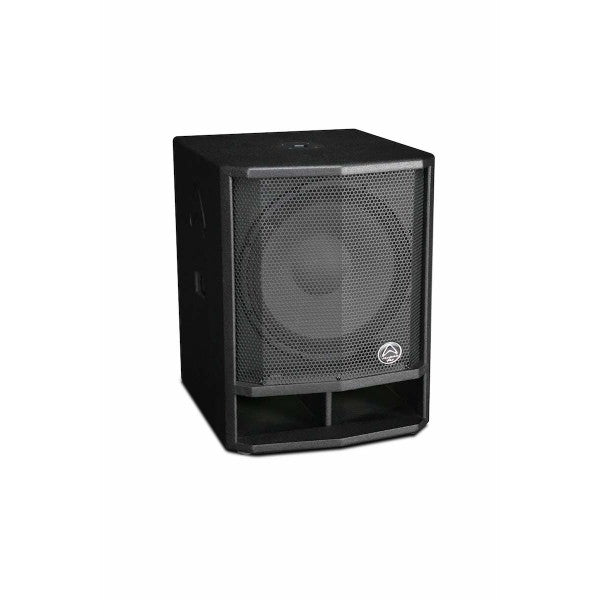

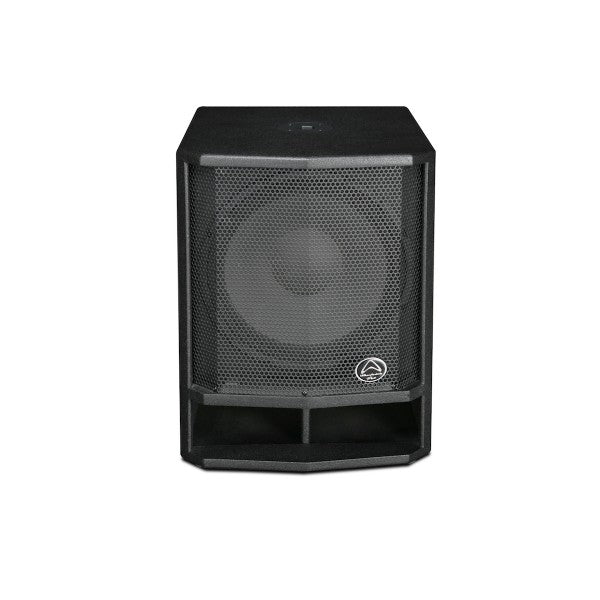

Wharfedale Pro DVP AX15B Powered Subwoofer
Wharfedale Pro DVP AX15B Powered Subwoofer
The Wharfedale Pro DVP AX15B Subwoofer is an active speaker system designedd to include a power amplifier, which allows you to use the system without the use of external sound amplification devices. In addition, the module includes a crossover that determines the frequency bandwidth both for its own speaker and for the wide-range systems used in the kit. The system power is 600-Watts (RMS) with a maximum value of 1200-Watts, and the sound pressure reaches 130 dB.
With an internal Class D amplifier using fan-less convection cooling, the DVP-AX15B subwoofer delivers power and functionality from a road ready MDF cabinet.
An internal adjustable Low Pass Filter makes connection to other loudspeakers simple and 0° / 180° polarity switching means that phasing issues are no longer a problem.
Features:
- 15" Active subwoofer
- MDF construction
- Class D amplification
- 600w RMS
- 1200w Peak
- Adjustable low pass filter
- 130dB Max SPL @1m
- Custom dual layer LF driver
- 2.5" voice coil
Specifications:
- Model name DVP-AX15B
- System type Active 15" subwoofer
- Frequency Response (+/-3dB) 45-150Hz
- Frequency Range (-10dB) 38-150Hz
- Max SPL @ 1m 130dB
- Sensitivity @1w / 1m 98dB
- LF Transducer
- Size 381mm / 15"
- LF coil size Dual layer 2.5"
Amplifier - LF Power Amplifier -Class D, RMS/Peak Watts 600w / 1200w
- HF Power Amplifier -Class D, RMS/Peak Watts N/A
- DSP N/A
- Amplifier Protection, Power On, Thermal, low voltage Yes
- Driver Protection,DC, Short, Clip limiter, clip indicator Yes
- Limiter indicator Red LED
- Power indicator Green LED (Red LED front)
Inputs - Input sensitivity : Balanced 775mv
- Max input level 6v
- Input connector XLR & 1/4" (Line/MIC)
- Input impedance Balanced : 20k
- LPF control 80Hz - 120Hz
- Polarity control 0° / 180°
Outputs - Line output connector XLR THRU/HPF(OUT)
- AC Power Options : SMPS 220-240V 50/60Hz
- 100-120V 50/60Hz
- Pole socket 35mm
- Handles 2 (one on each side)
- Enclosure material MDF / Black paint
- Grille material Steel
Dimensions unpacked - Height 591mm / 23.3"
- Width 454mm / 17.9"
- Width (rear) 454mm / 17.9"
- Depth 534mm / 21.0"
- Dimensions packed
- Height 681mm / 26.8"
- Width 620mm / 24.4"
- Width (rear) 620mm / 24.4"
- Depth 540mm / 21.3"
- Net weight 29.9kg / 65.8lbs
- Gross weight 34.9kg / 76.8lbs
